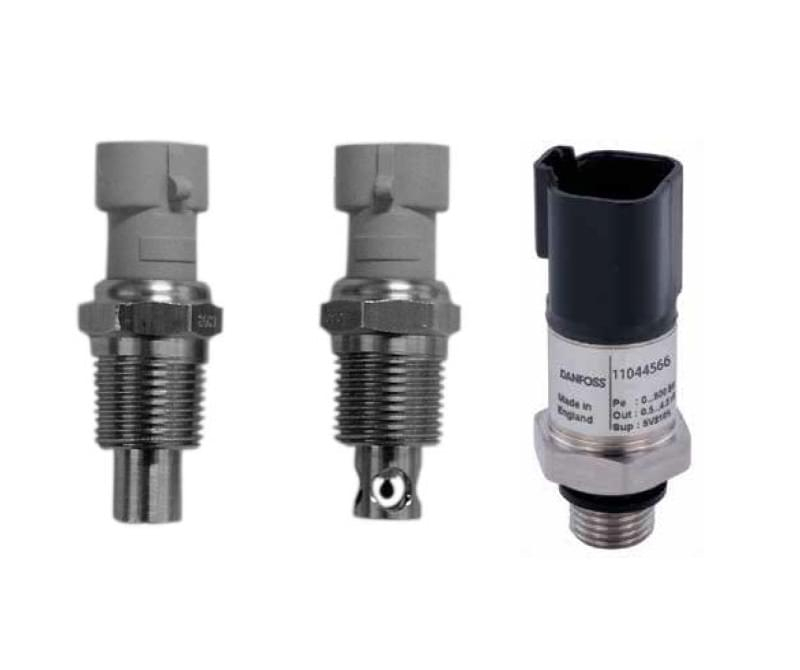

Sensors - the intelligent connection between machine and control system

Our temperature or pressure-detecting sensors link your machine functions to the control system. PLUS+1™ Compliance supports easy integration.

Many of the sensors in our broad range are PLUS+1™ Compliant − contributing to precision control systems on all kinds of mobile application.

Sensores

Heavy-Duty Pressure Transmitter

This heavy-duty pressure transmitter is specially suited to hydraulic applications where cavitation, liquid hammer or pressure peaks may occur. The transmitter has an integrated pulse-snubber.

Available in six sizes ranging from to 2.5 to 600 bar [36.2 - 8,702 psi].

The PLUS+1™ Compliant Pressure sensor Compliance block is designed to provide a measured output in PSI, Bar, or as a percent of the blocks operating range related to a given input voltage.



Features and benefits:

  • Overload pressure is 10 to 20 times the measuring range.
  • Temperature compensated, linearized, and laser calibrated.
  • Ratiometric output signal: 10 to 90% of supply voltage.
  • Available with DIN or UNF thread.

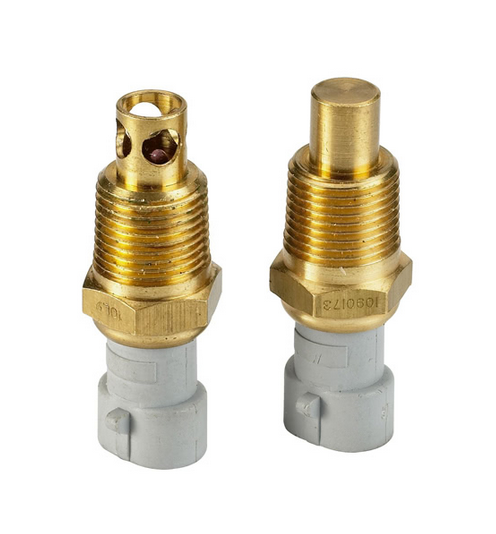

Temperature Sensors

Sauer-Danfoss supplies thermistor-type liquid and air temperature sensors. The resistance of the sensing element is a function of the measured process media temperature, where the relationship between measured temperature and sensing element resistance is non-linear.

The PLUS+1™ Compliant temperature sensor Compliance block is designed to provide a measured temperature output related to a given resistance.



Features and benefits:

  • Integrated connector and sensor body
  • Brass body construction
  • Anti-fouling air temperature sensor design
  • 50-125°C operating temperature range
  • FDC software configurable
